Vyhrievané obdĺžnikové sklíčko pre mikroskop NIKON

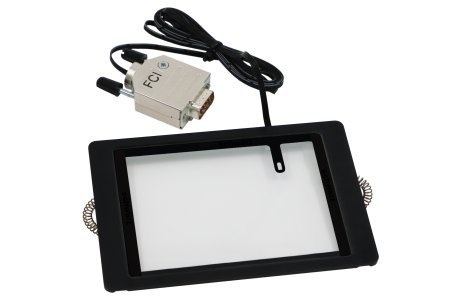

Heated, rectangular glass insert plate (aluminum frame) for stages TC-S-SR and TC-S-SRF F of Nikon Ti2 and TS2R inverted microscopes, 128 x 86 mm, break-resistant glass, spring-loaded locking to the microscope stage; 13 W; needs control unit HTiG.

Parametre

• Heated glass insert is placed into the opening of the microscope´s cross-moving stage
• Combines with both heated and non-heated microscope stages
• Spring-loaded lock to the microscope stage
• Cable does not interfere with microscope operation
• Temperature is set on and controlled by the HTiG controller
• Dimensions 128 x 86 mm
• Temperature accuracy in the center of the insert: ± 0.2°C at 21°C ambient temperature

Výhody

• Insert easy to install without assistance
• Due to the novel insulation of the glass insert, it is not necessary to have a heating system installed in the surrounding original stage
• Optimum temperature distribution, precision and stability
• Break-resistant glass
• Maximized glass area
